High Standard MCU Master Module Sign Retroreflectometer

Brand Name : STP

Model Number : STP-TSR

Place of Origin : CHINA

MOQ : 1

Price : 3000-3500

Payment Terms : T/T

Supply Ability : 1000

Packaging Details : inner box and master carton , 1pc per carton

Observation angle : 0.2°

Angle of incidence : -4°

Error of reproducibility measurement : ≤3%

Error of repeatability measurement : ≤2%

Light source color temperature : 2856±50K (Standard illuminant A)

Measurement items : retroreflective coefficient cd .lx-1 .m-2

Color : Red

Measurement range : 0---1999.9

Testing spot diameter : 32mm

Built-in battery capacity : 3500mAh

Charger : DC 8.4V

Instrument size : 220mm × 250mm × 80mm (L×H×W)

Contact Now

Sign Retroreflectometer STP-TSR High-standard MCU master module and high precision

STP-TSR – a leading and reliable force behind improving driving safety

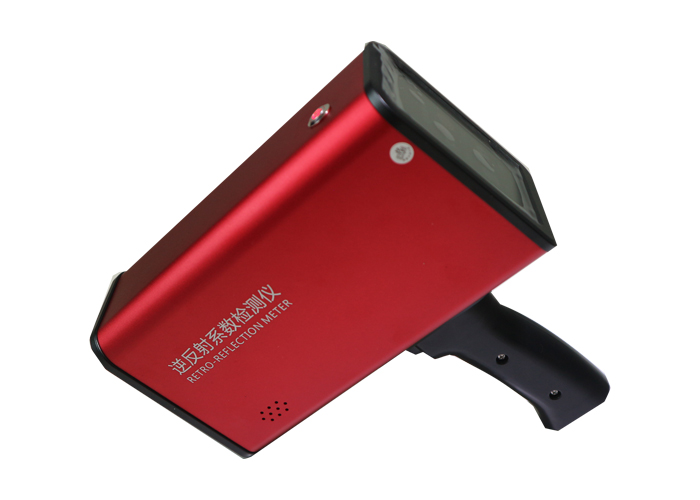

Retroreflectometer STP-TSR is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.

Main technical parameters

Measurement items	retroreflective coefficient cd .lx .m²
Measurement range	0---1999.9
Observation angle	0.2°
Angle of incidence	-4°
Testing spot diameter	32mm
Charger	DC 8.4V
Instrument size	220mm × 250mm × 80mm (L×H×W)

Packing list

Serial number	Name Specification	Number
01	Traffic Sign Retro-Reflection Meter	1
02	Charger	1
03	USB Date Line	1
04	Instructions	1
05	Certificate	1
06	Warranty Card	1

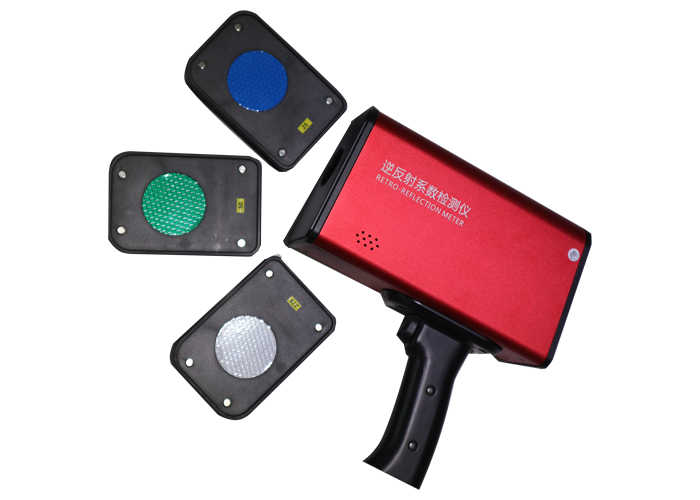

07	Calibration Board	1
08	Stylus	1

High Standard MCU Master Module Sign Retroreflectometer

Our Service

Customized Logo

Free logo printing will be offered if order quantity is above 1pcs.

Our Warranty

1 Years warranty for all customers .

Spare Parts

A proportion of spare parts will be shipped along with formal orders.

Shipment

DHL , FEDEX , UPS , TNT , EMS :3-7 working days

Any other shipment way could be negoticated

Product Tags:

Portable Sign Retroreflectometer

High Precision Sign Retroreflectometer

3500mAh Battery Sign Retroreflectometer

High Standard MCU Master Module Sign Retroreflectometer Images
