Product Description:

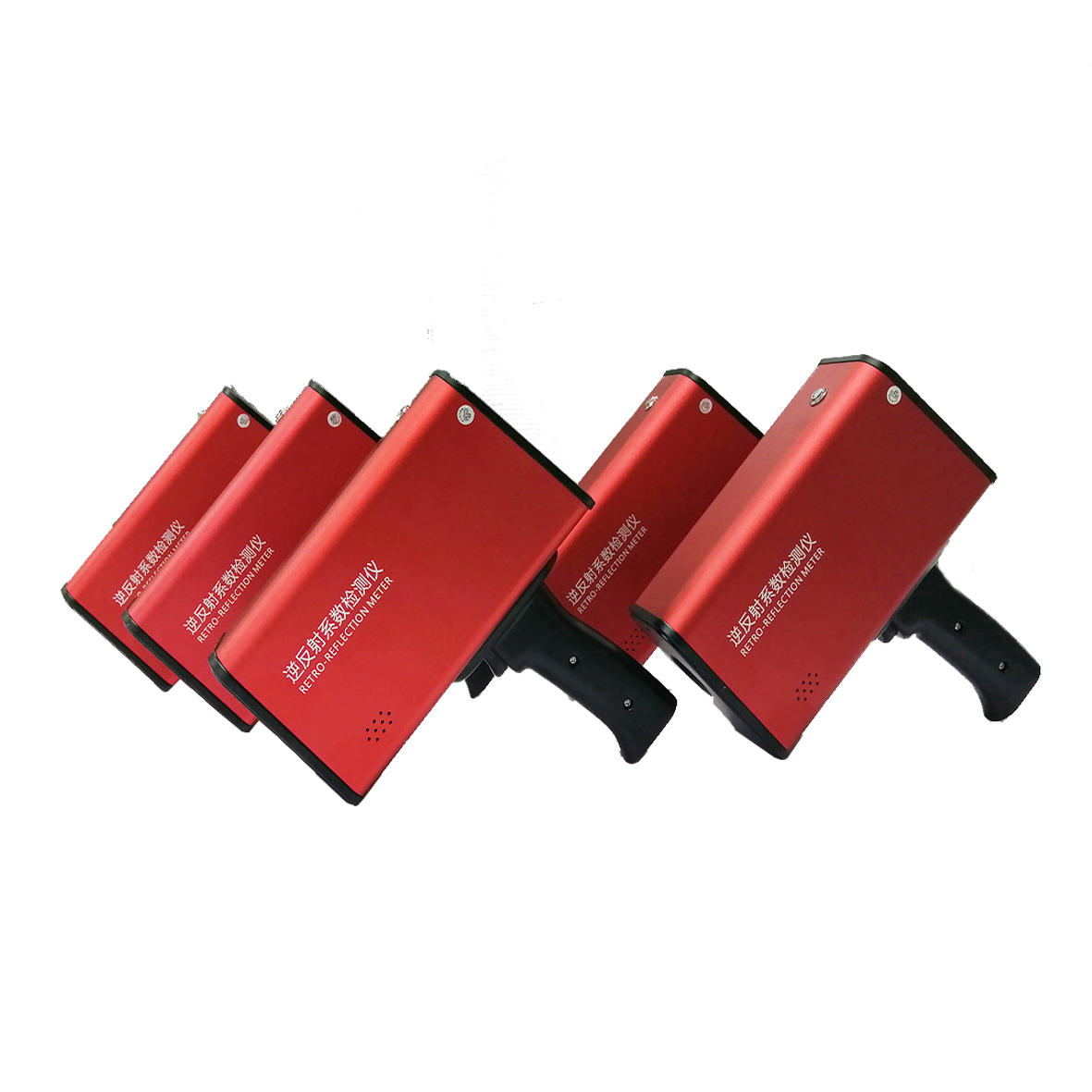

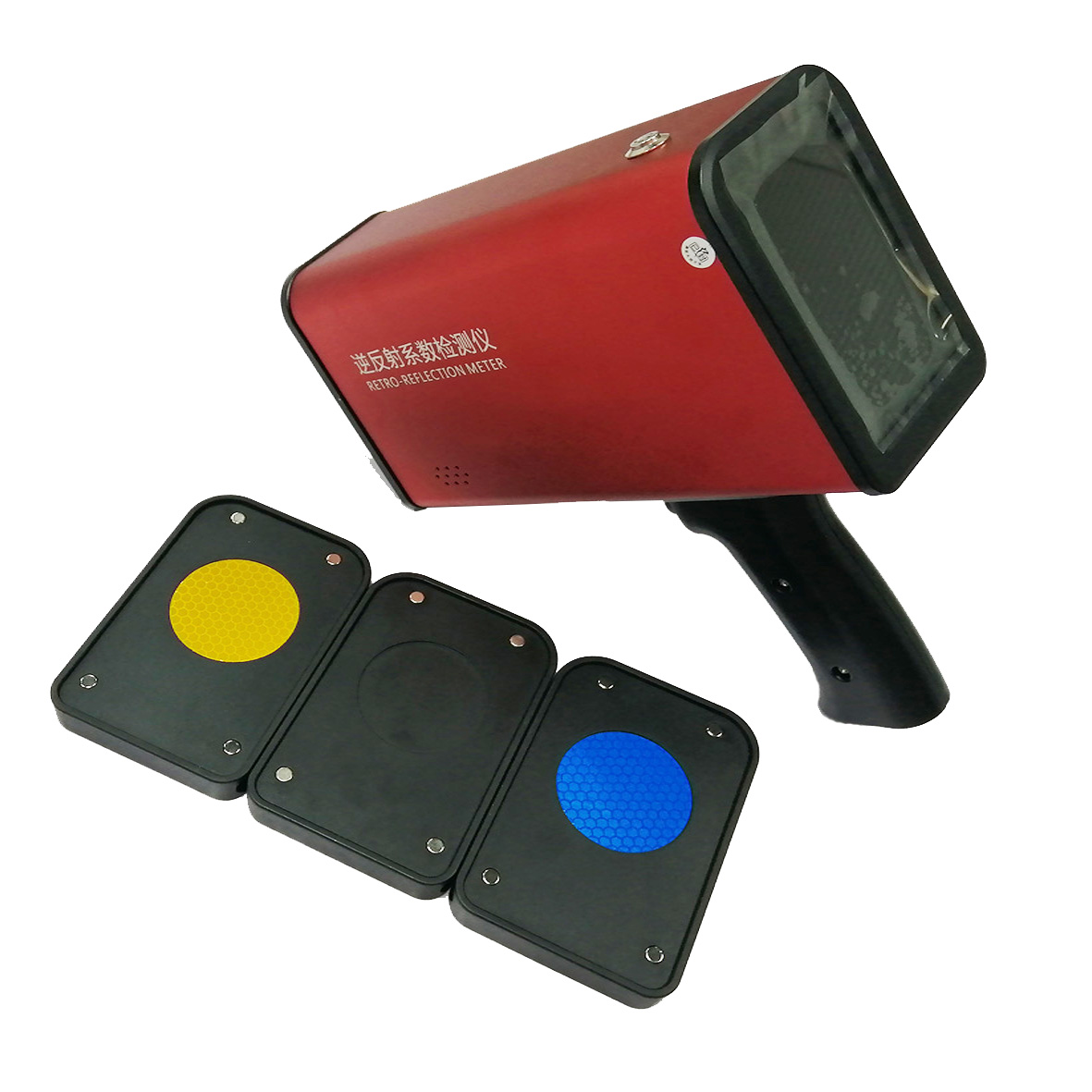

The Sign Retroreflectometer is a device designed to measure retroreflectivity of sign materials with an observation angle of 0.2°, with a testing spot diameter of 32mm. It has 8GB of data storage space, allowing for long-term data storage. The instrument is small in size and has a long continuous working time of battery. Its color is red. It has a wide operating temperature range, allowing it to work between -5℃ and +50℃. The accuracy of the repeatability measurement is also reliable and provides reliable data for the user.
Technical Parameters:
| Parameter | Value |
| Observation angle | 0.2° |
| Ambient humidity | ＜98%, No Frost |
| Built-in battery capacity | 3500mAh |
| Language | English |
| Angle of incidence | -4° |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |
| Error of reproducibility measurement | ≤3% |
| Testing spot diameter | 32mm |
| Ambient temperature | -5℃~+50℃ |
| Measurement items | Retroreflective Coefficient Cd .lx-1 .m-2 |
Applications:
Sign Retroreflectometer is a high-precision device with a measurement range from 0.2° to 10,000 mcd/m2. It is a brand-name Retro Reflective Meter with the model number STP-TSR. It is certified by the CCC and manufactured in China. The minimum order quantity is 1 and the packaging details include an inner box and a master carton with 1pc per carton. The delivery time is 5-8 work days, and the payment terms are T/T. The supply ability is 1000. It comes in red and has an ambient humidity of ≤98%, no frost. The error of repeatability measurement is ≤2% and it has 8GB of data storage space. The observation angle is 0.2° and it also has a continuous working time of battery.
Customization:
Customized Service for Retro Reflective Meter STP-TSR
Brand Name: Retro Reflective Meter
Model Number: STP-TSR
Place of Origin: CHINA
Certification: CCC
Minimum Order Quantity: 1
Packaging Details: inner box and master carton , 1pc per carto
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 1000
Continuous working time of battery: ＞8h
Measurement items: Retroreflective Coefficient Cd .lx-1 .m-2
Ambient humidity: ＜98%, No Frost
Error of reproducibility measurement: ≤3%
Charger: DC 8.4V
Support and Services:
Sign Retroreflectometer technical support and services include:
- 24/7 technical support
- Software and hardware upgrades
- Remote and on-site troubleshooting
- Professional maintenance and repairs
- Regular reports and tests
- Training and certification
- Product customization
Packing and Shipping:
The Sign Retroreflectometer is packaged in a foam-lined cardboard box for protection during shipping.
The product should be shipped with a delivery confirmation to ensure it arrives safely to its destination. The customer should be given tracking information for their order, so they can track the shipment.
The package should be marked with "Fragile" and "Handle with Care" labels.
